Supply Oil sludge vacuum tanker 13000 L According to GCC (Gulf Community. Country)
Project location :NORTH REFINERIES IRAQ. (ش.ع)شركة مصافي الشمال
Client :MINISTRY OF OIL/NORTH REFINERIES CO. (ش.ع)شركة مصافي الشمال
Contract Value (US$) :(US$): 0
Contract Duration: 180 Days
Contract Start Date:2023-07-23
Contract Completion2023-12-23
Scope of work:-

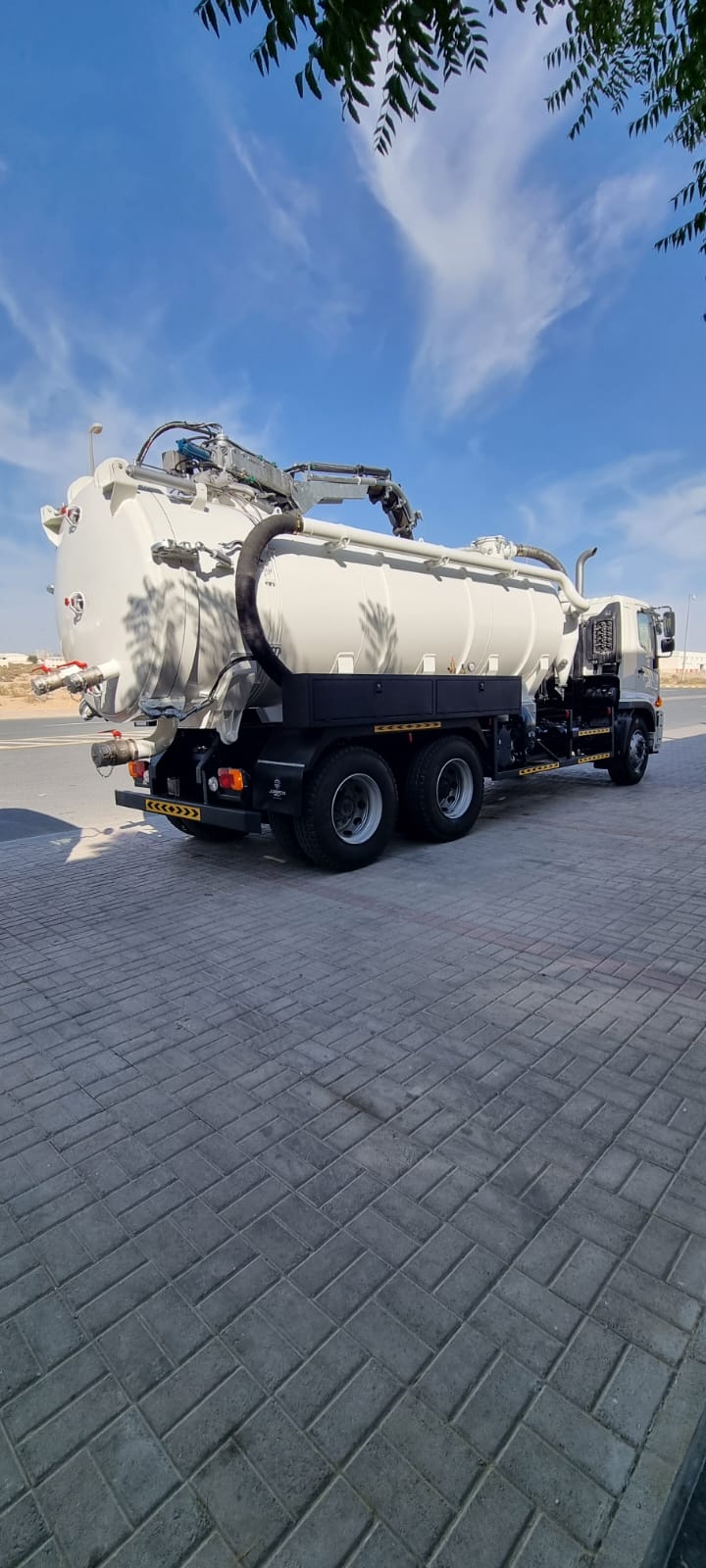

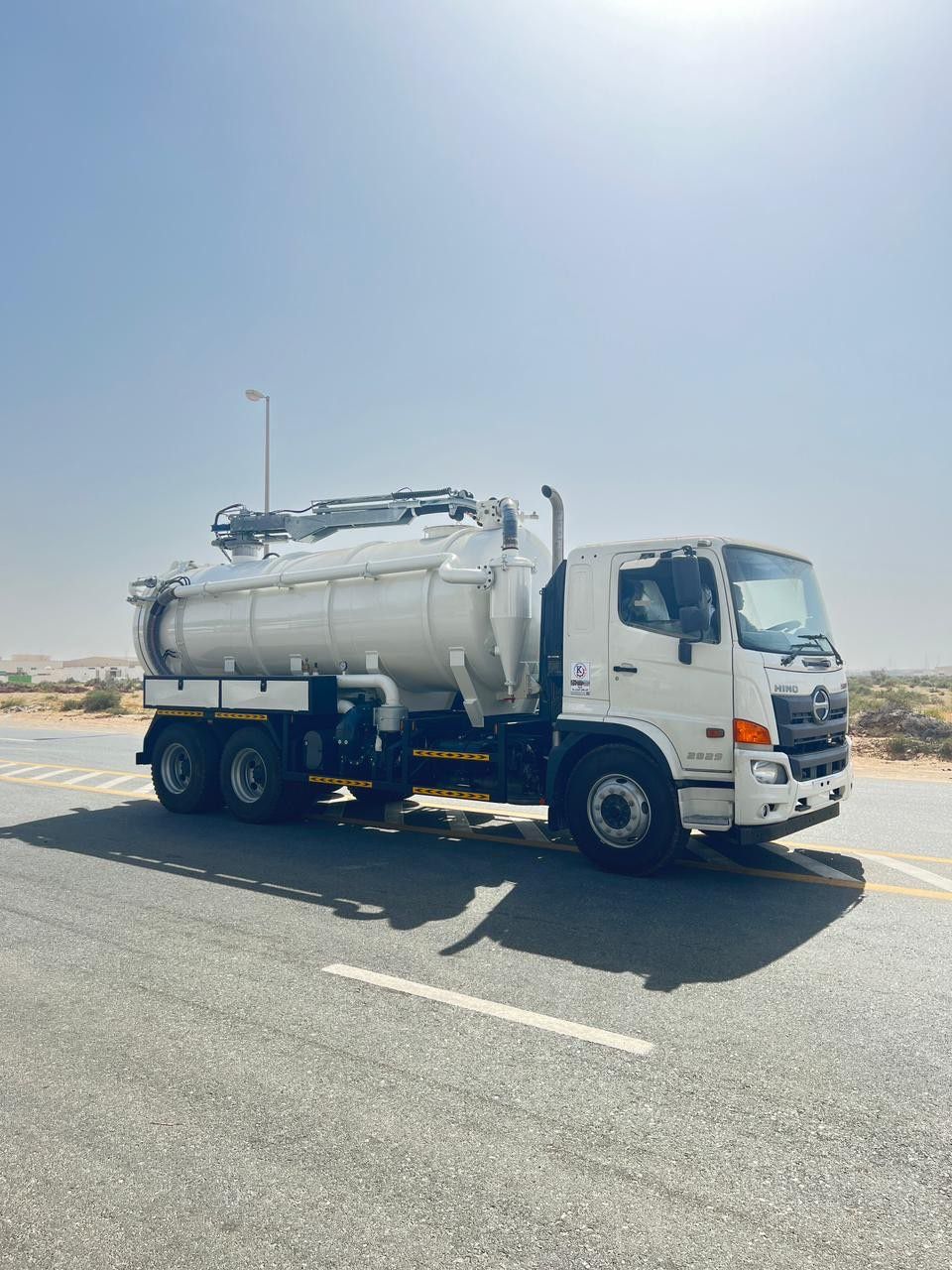

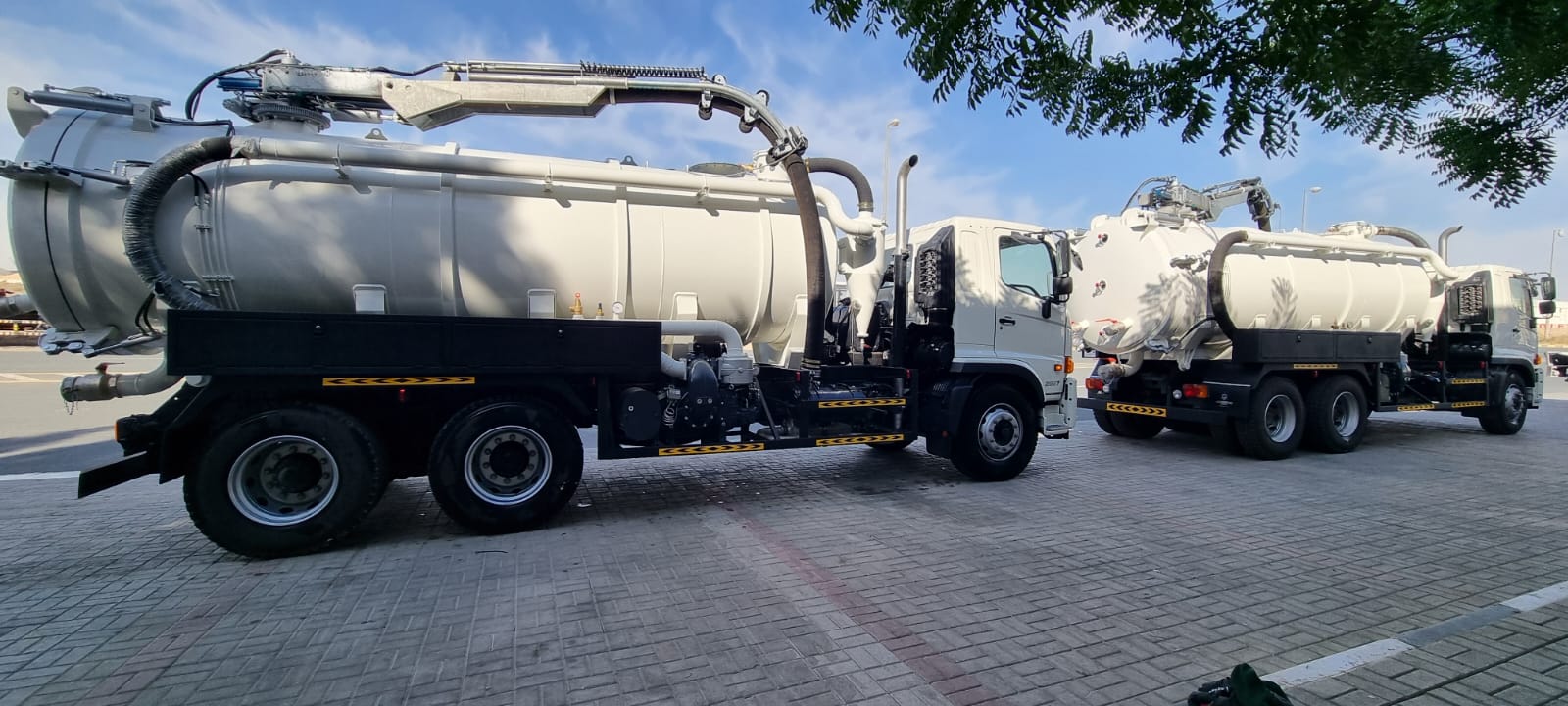

AL KHATAB AL MUTAHIDA Co. had been contracted with (MINISTRY OF OIL/NORTH REFINERIES CO. (ش.ع)شركة مصافي الشمال) To Supply 2 Oil sludge vacuum tanker 13000 L According to GCC (Gulf Community. Country) standardization suitable for Iraq diesel fuel. The year of manufacturing is (2023).
|
NO |
Description |
Quantity |
|
1 |
Oli sludge vacuum tanker 13000 L Hino chassis |
2 |
Hydraulic System:-
- Hydraulic pump – suitable pump to drive the Vacuum tank with hydraulic motor and rear door cylinder.

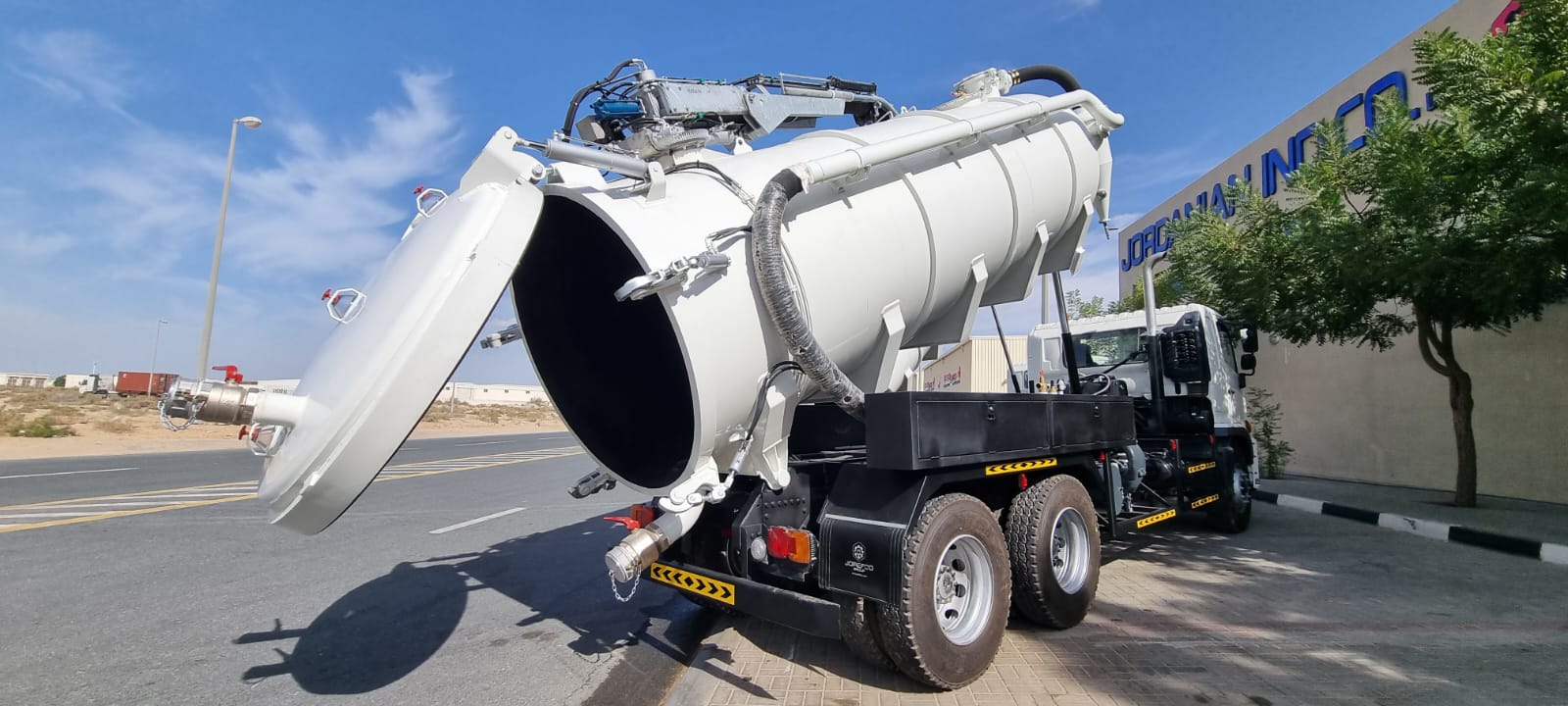

- Rear door cylinder -to drive the opening and closing of the rear door. Suitable hinges and clamps will be provided same as manual rear door opening.
Control Valve – suitable hydraulic control valves.
Tipping Tank System:- Front End multi stage telescopic cylinder – suitable capacity cylinder will be provided to lift the tank during tipping.

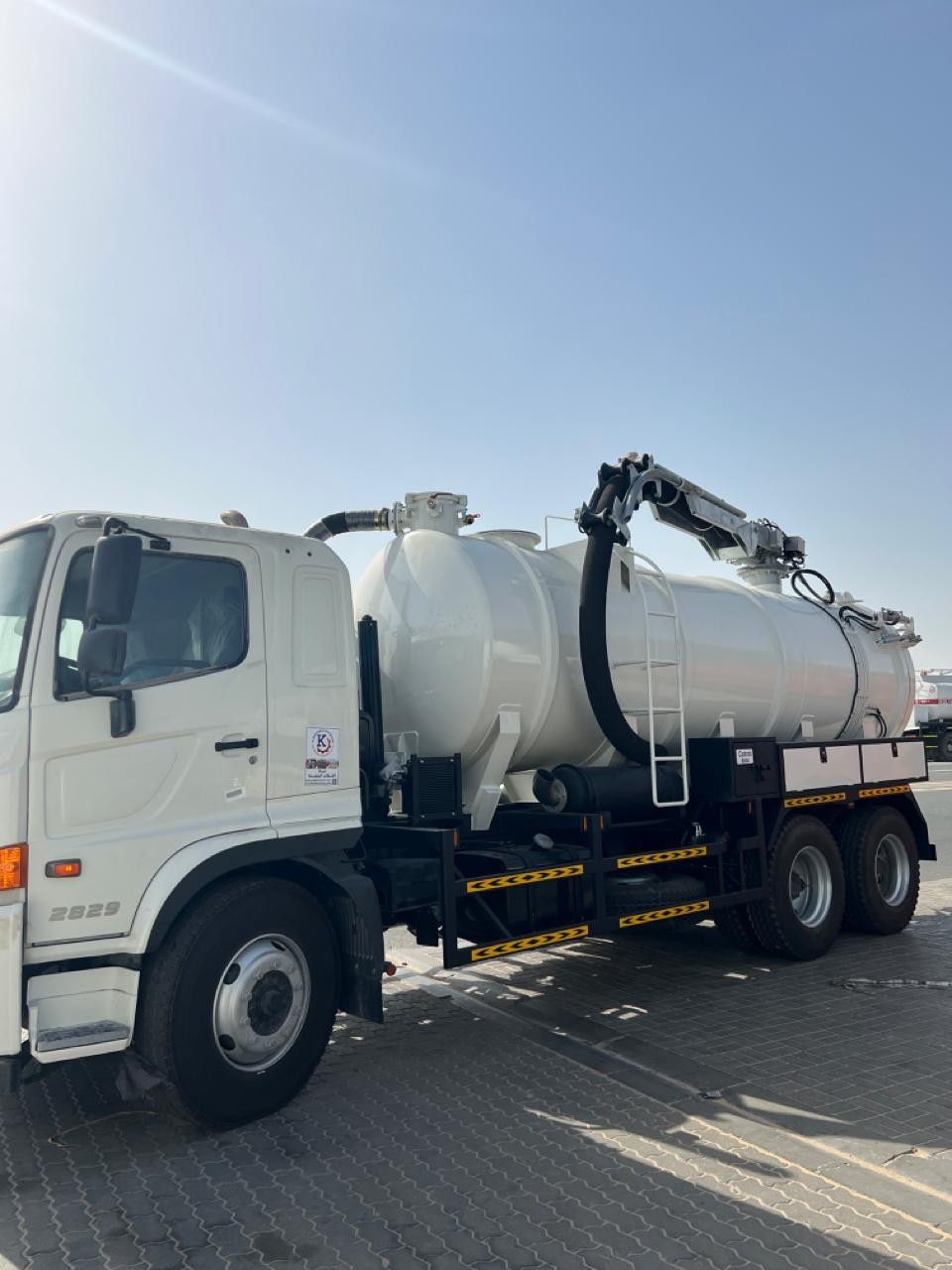

Suction boom hydraulic Operated, suitable for hose dia.6" c/w welding manhole.
- pneumatically operated shut-off valve, 12V solenoid valves, pendant control panel, no.2
- joy stick type controls; complete galvanized mild steel execution
- rotation 300 deg. Extension1350mm.
- maximum vertical extension +2922, -1852mm
- Heavy duty black type suction hose for the suction boom 6" (6 metres total)
