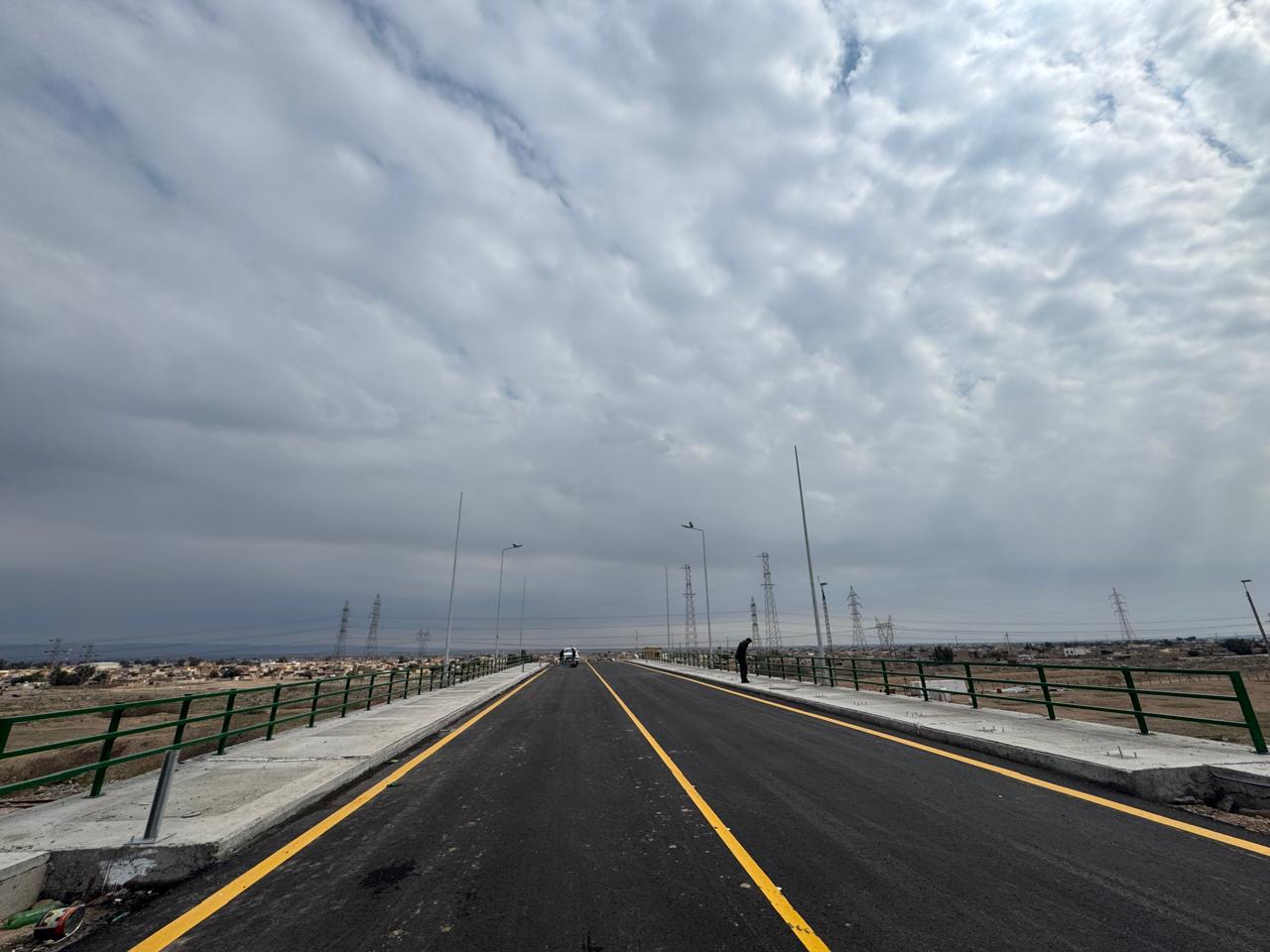

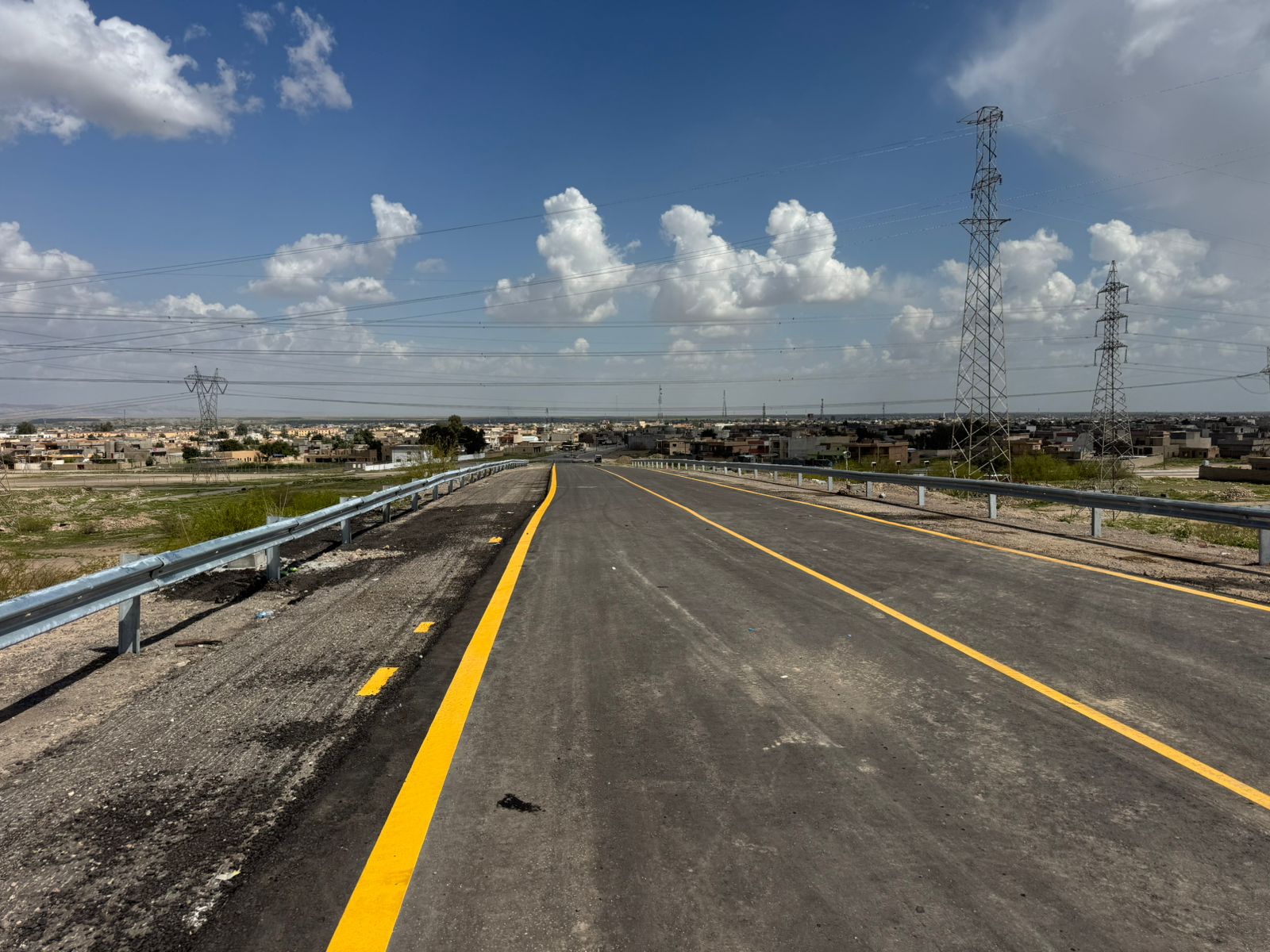

Rehabilitation of Al-Sikak bridge in Baiji
Project location :Salahudeen Governorate.
Contract Value (US$) :(US$):
Contract Duration: 360 Days
Contract Start Date:2023-10-21
Scope of work:-
AL KHATAB AL MUTAHIDA Co. had been contracted with(UNDP to Rehabilitation of Al-Sikak bridge in Baiji / Salahudeen Governorate.)
- Site Preparation:
- Warning Signs,Permanent Signs,Temporary Signs.

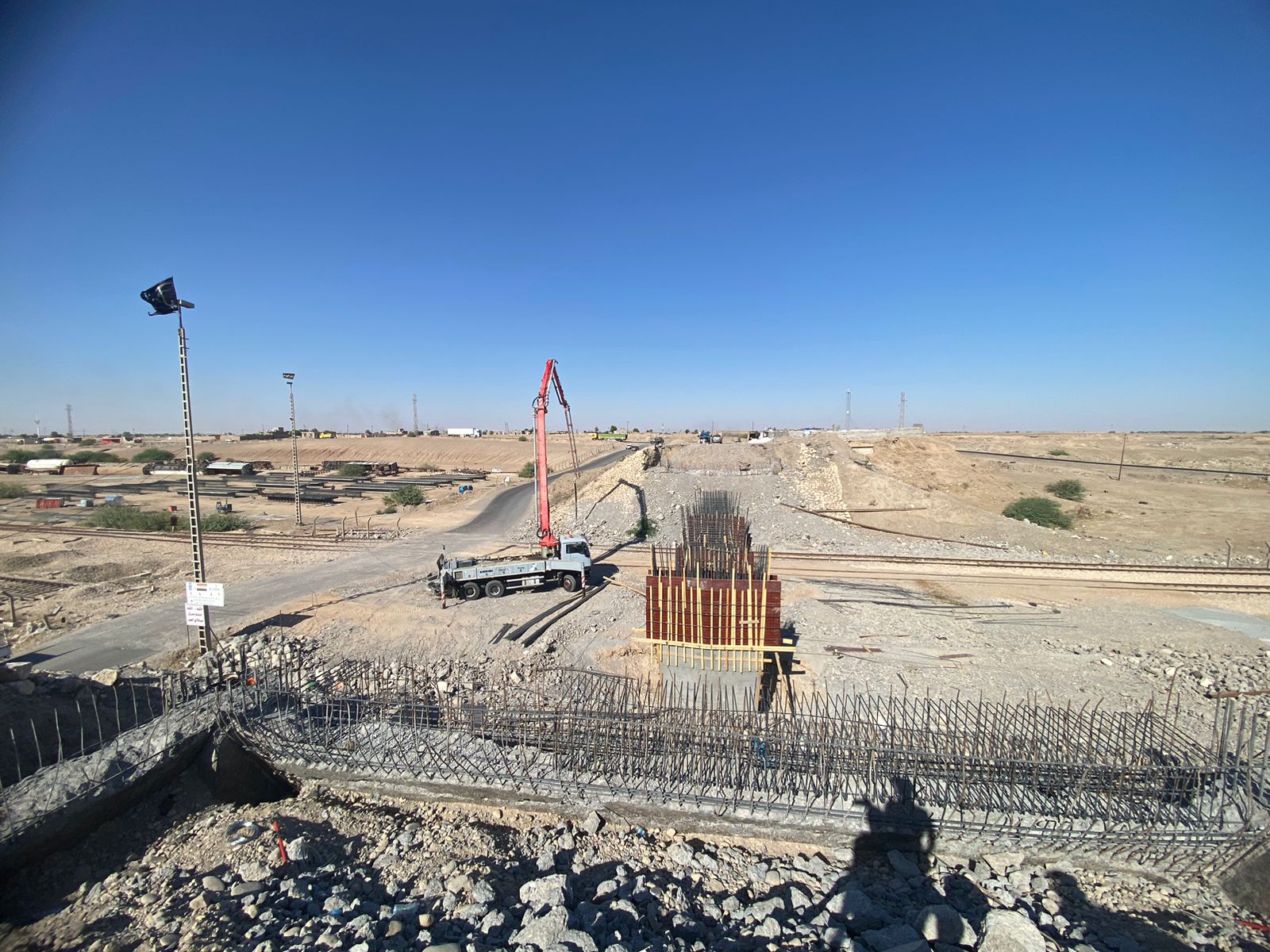

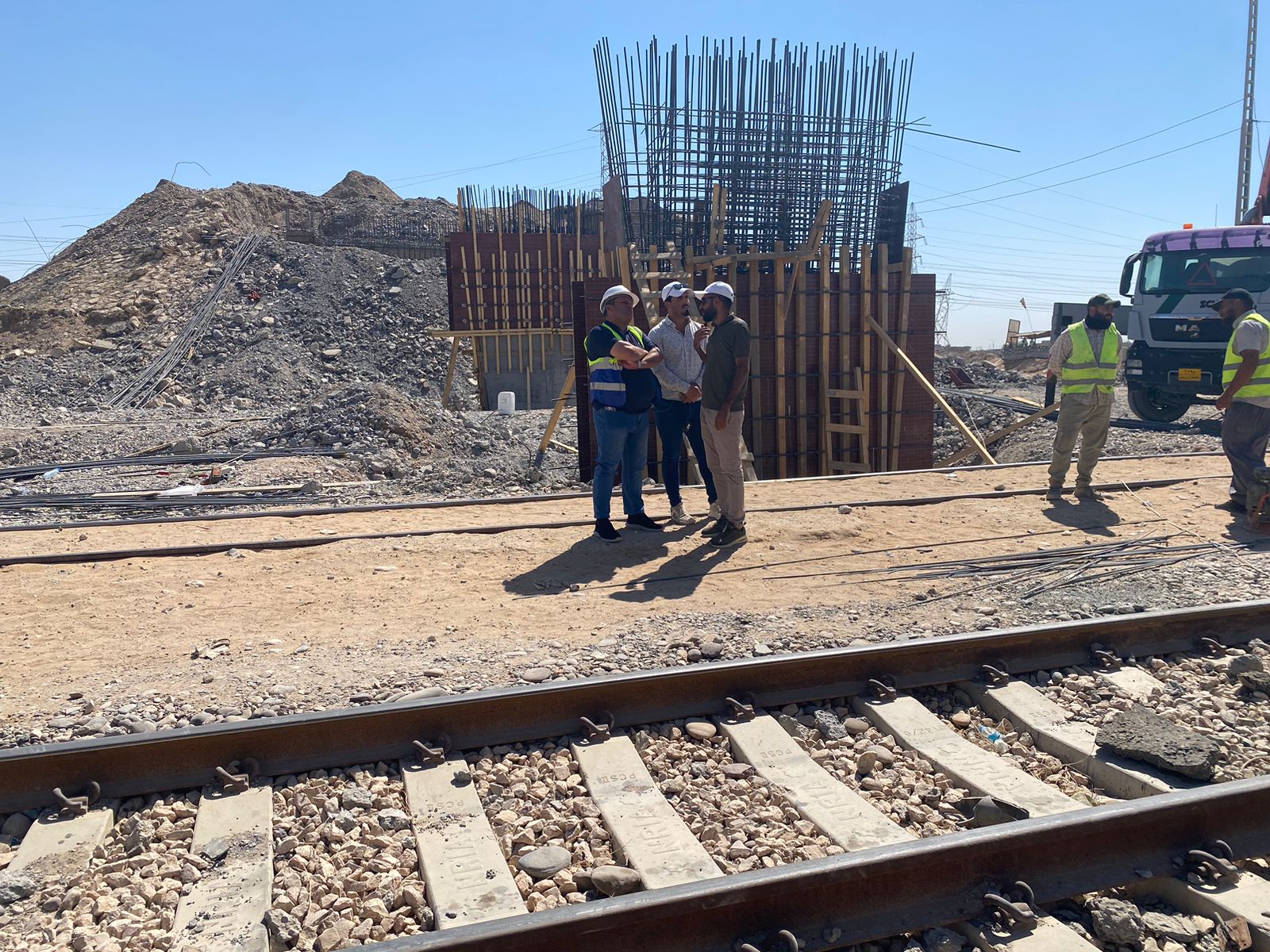

- Concrete Works,Blinding Concrete,Reinforced Concrete,Abutment,Piers with concrete bases pad (50*50*5 cm),Foundations,diaphragm beam,approach slab,Deck slab.
- Bearing Pads and Precast Concrete Girders,Elastomeric Bearing Pads,Precast (pre-tension) Concrete Girders.

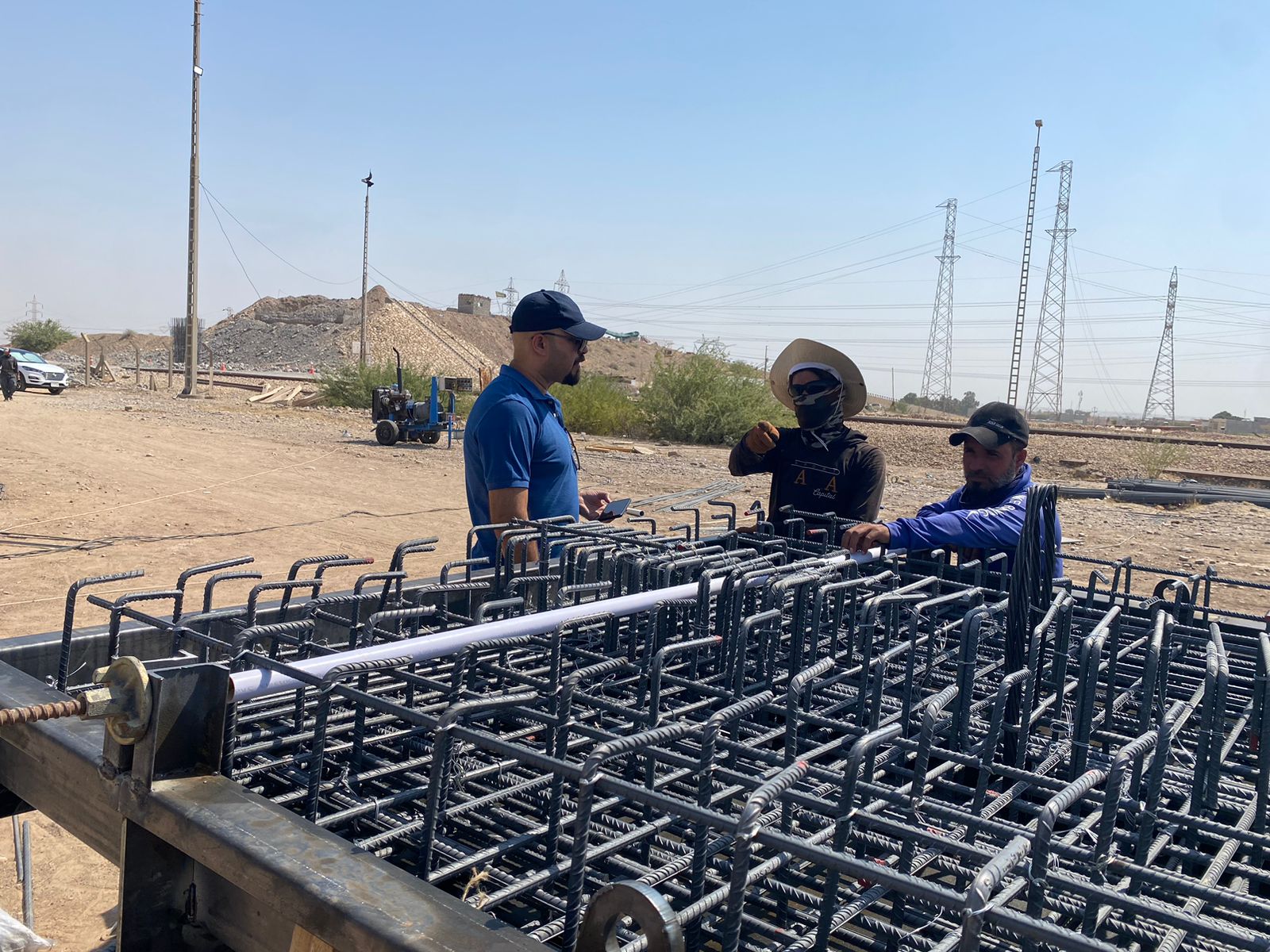

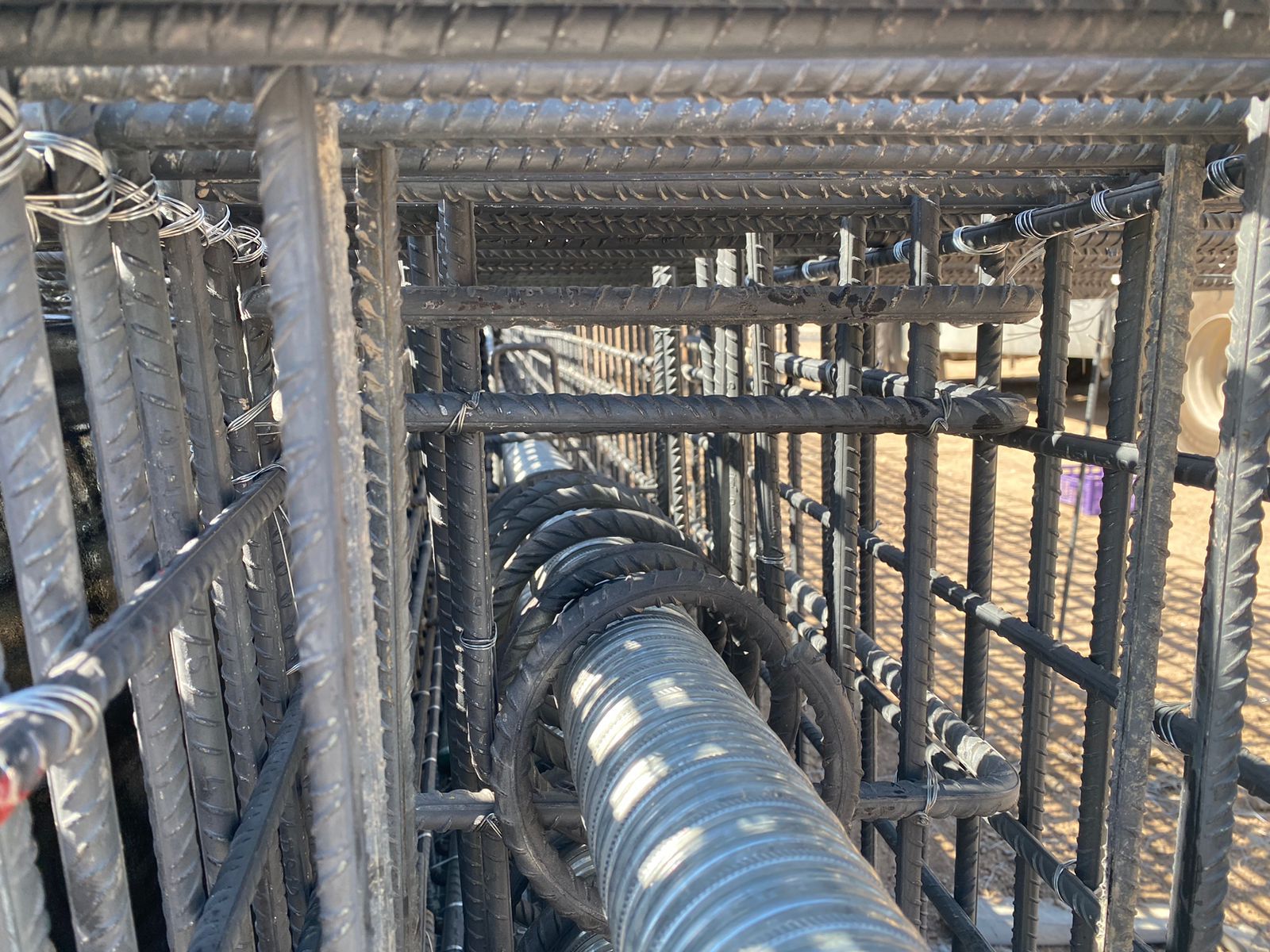

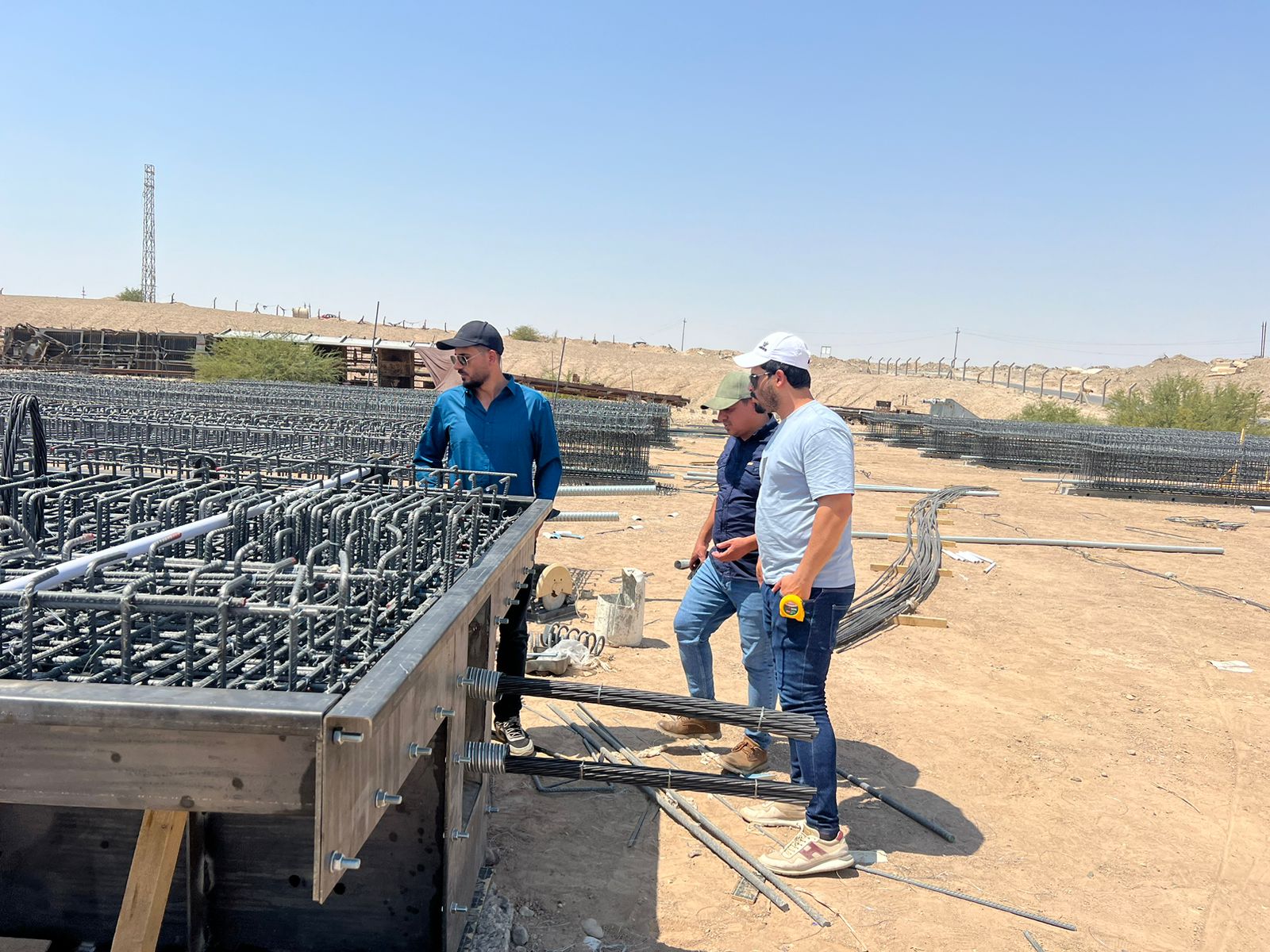

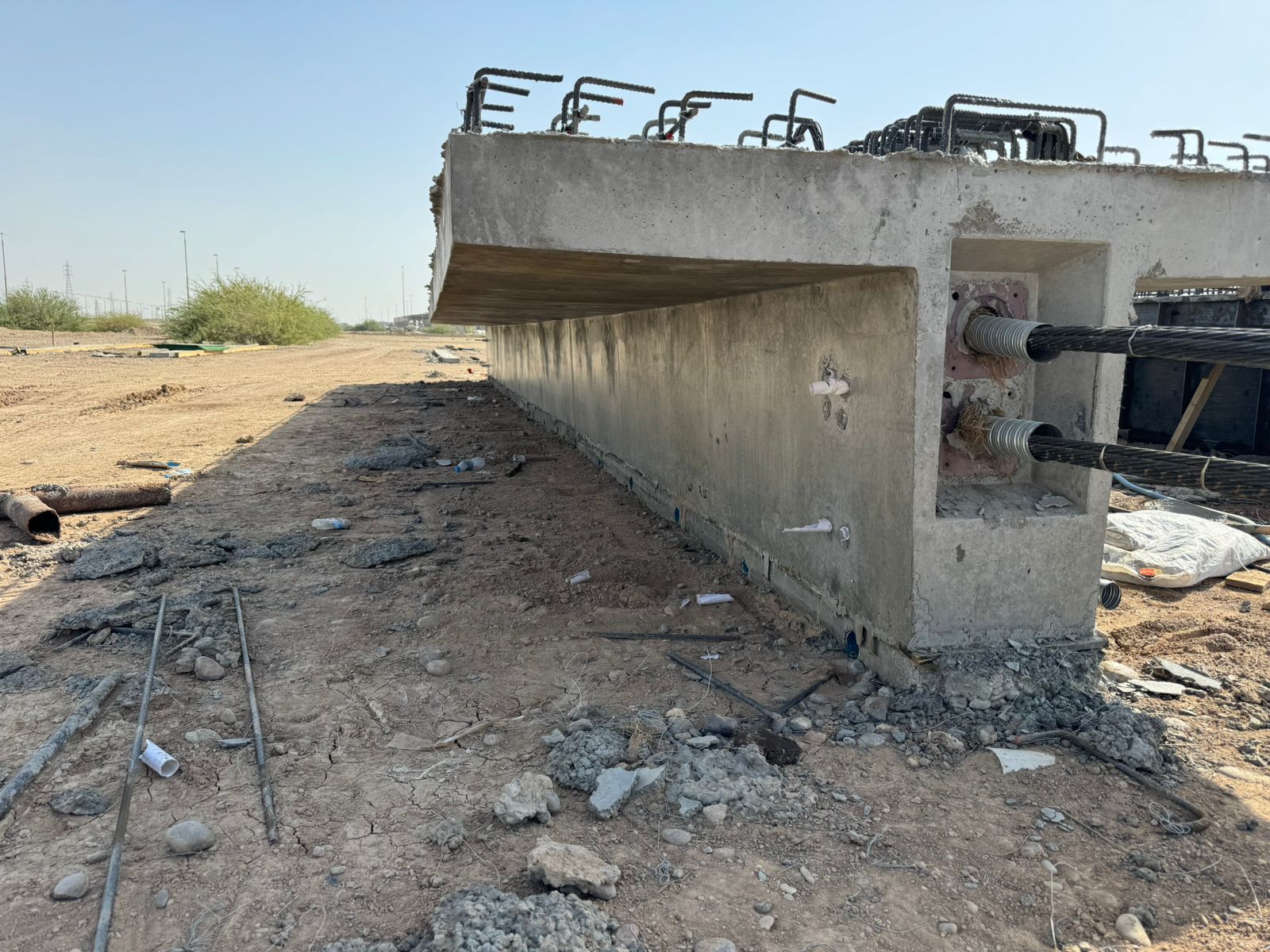

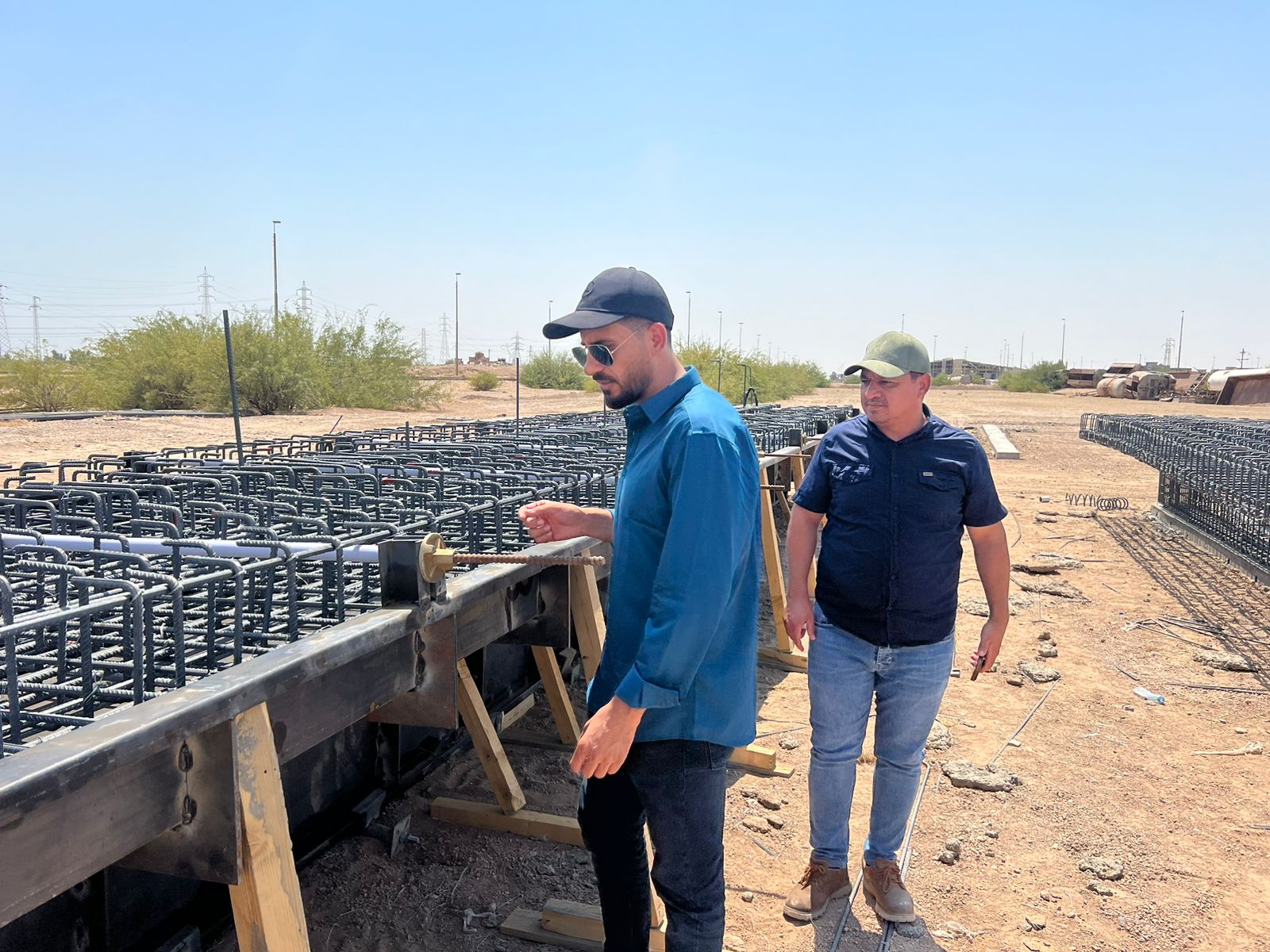

- Precast (pre-tension) Concrete Girders:install reinforced concrete girders (Pre cast pre stressed T section) type as details below:The compressive strength for the concrete not less than 55 MPa.
- Backfilling Layers.
- Pavement, Sidewalks & Expansion Joint,Approaches pavement,Bridge Pavement.
- Expansion Joints.(install waterproof expansion joint seals (chloroprene) type T100)
- Thermoplastic Paint for Road Marking.

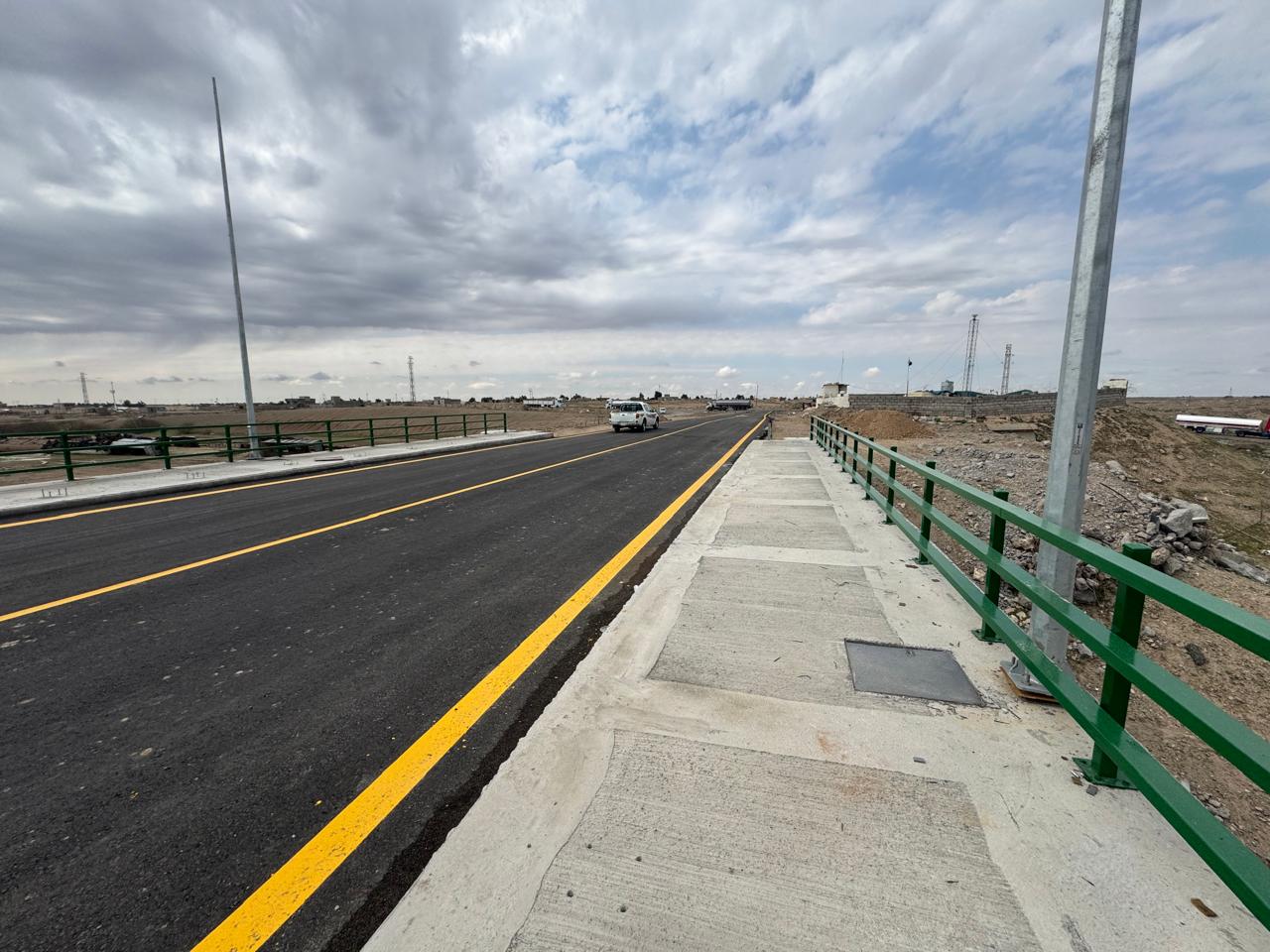

- Bridge Walkway Painting.
- Sanitary Works.
- Galvanized Steel Guardrail on The Bridge walkways.
- Solar street LED.
