Construction of 132 KV Line for the 132 K.V Taji Station Secondary station and replace Transformer 63 MVA Russian station.

Scope of work: -

AL KHATAB AL MUTAHIDA Co. has been contracted for Construction of 132 KV Line for the 132 K.V Taji Station Secondary station and replace Transformer 63 MVA Russian station, in accordance with the contract requirements and the Bill of Quantities (BOQ). This work is a critical part of improving electricity in the region.

1- Establishment of a 132 kV Line Bay at Taji Secondary Station for the Connection of 132 kV Taji and Tajiate Stations*

1. List of Commodities and Schedule of Delivery (Electrical and Mechanical Works for the Construction of a 132 kV Line at the 132 kV Taji Station)
   • Electrical and mechanical works for the construction of a 132 kV line at the Taji station
2. List of Services Related to the Contract and Work Schedule (Electrical and Mechanical Works for the Construction of a 132 kV Line at the 132 kV Taji Station)
   • Design, manufacturing, and testing of materials and equipment
   • Performance guarantee for equipment
3. Schedule of Origin Countries for Electrical and Mechanical Works for the Construction of a 132 kV Line at the 132 kV Taji Station
   1. Electrical and mechanical works for the construction of a 132 kV line at the

Taji station  (America, Europe, Asia, Japan, South Korea)

4. List of Tests and Engineering Inspections
   1. Factory Acceptance Test (FAT) for all items in the table (construction of a 132 kV line at the 132 kV Taji station)

• Electrical Works Schedule for the Establishment of a 132 kV Line Bay at the 132 kV Taji Station for the Connection of Taji and Tajiate Stations:

1. Supply of a control panel containing all control devices, measuring instruments, auxiliary switches, interlocking devices, signal lamps, and alarms for 132 kV equipment
2. Supply of a protection panel including all line protection devices and alarm signals
3. Supply of a 132 kV circuit breaker ,Supply of a 132 kV disconnector without grounding switch
4. Supply of a 132 kV disconnector with grounding switch ,Supply of a 132 kV current transformer with a ratio of 5/5/200/5/5/5 ,Supply of a 132 kV capacitive voltage transformer
5. Supply of a 132 kV surge arrester
6. Supply of 2.5x12 mm armored control cable ,Supply of 64 mm armored control cable ,Supply of 24x24 mm armored control cable ,Supply of 10x2 mm armored control cable,Supply of 61 mm copper grounding rod ,Supply of 120 mm copper strip ,Supply of an electric welding meld for grounding networks ,Supply of electric welding powder

• Mechanical Works Schedule for the Establishment of a 132 kV Line Bay at the 132 kV Taji Station for the Connection of Taji and Tajiate Stations:

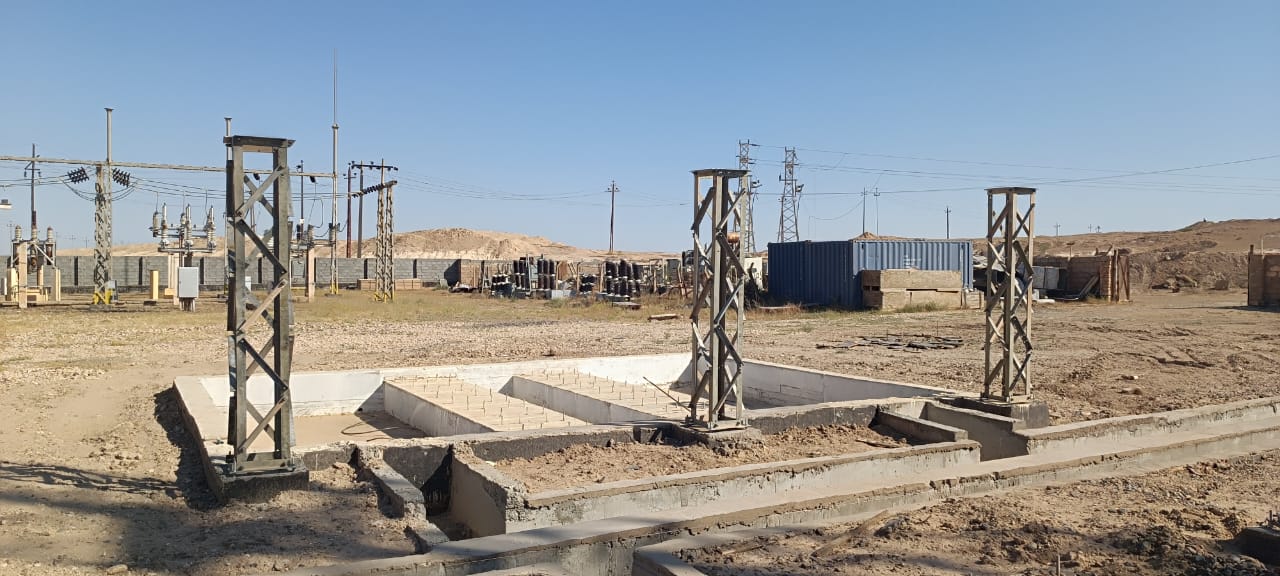

1. Manufacturing of galvanized steel structures for 132 kV electrical equipment
2. Manufacturing of various sizes and shapes of connecting clamps for the primary side of electrical equipment,Manufacturing of a high-pressure 132 kV galvanized steel cable tray
3. Supply of electric drawing for all equipment ,Installation, calibration, welding, and commissioning of all equipment

SCOPE OF WORK

Project Name / Replacement of a 63 MVA Transformer at the Haditha Russian Station 132 kV

1. List of Commodities and Schedule of Delivery (Replacement of a 63 MVA Transformer for Electrical, Mechanical, and Civil Works at Haditha Russian Station 132 kV)
2. Works for the replacement of a 63 MVA transformer
3. List of Services Related to the Contract and Work Schedule (Replacement of a 63 MVA Transformer for Electrical, Mechanical, and Civil Works at the Haditha Russian Station 132 kV)
   • Design, manufacturing, and testing of materials and equipment
   • Performance guarantee for equipment
4. Schedule of Origin Countries for Electrical, Mechanical, and Civil Works for the Replacement of a 63 MVA Transformer at the Haditha Russian Station 132 kV
5. Works for the replacement of a 63 MVA transformer | (America, Europe, Asia, Japan, South Korea)

• Electrical Works Schedule for Haditha Russian Station 132 kV

1. Supply of a 132 kV circuit breaker ,Supply of a 132 kV current transformer with a ratio of 5/5/5/300-600 ,Supply of a 132 kV disconnector,Supply of a 132 kV surge arrester
2. Supply of a 33 kV disconnector Supply of a control panel containing all control devices, measuring instruments, auxiliar switches, interlocking devices, signal lamps, and alarms for 132 kV equipment .
3. Supply of a control panel containing all control devices, measuring instruments, auxiliary switches, interlocking devices, signal lamps, and alarms for medium voltage equipment
4. Supply of a protection panel for the main transformer with an automatic voltage regulator (AVR) and a display screen ,Supply of a 33 kV transformer for service and grounding
5. Supply of a 33 kV transformer panel, Supply of a 33 kV 2000A circuit breaker for transformer panel, Supply of a 33 kV feeder panel ,Supply of a 33 kV feeder 1250A circuit breaker,Supply of a 33 kV busbar connection panel

• Mechanical Works Schedule for the Haditha Russian Station 132 kV

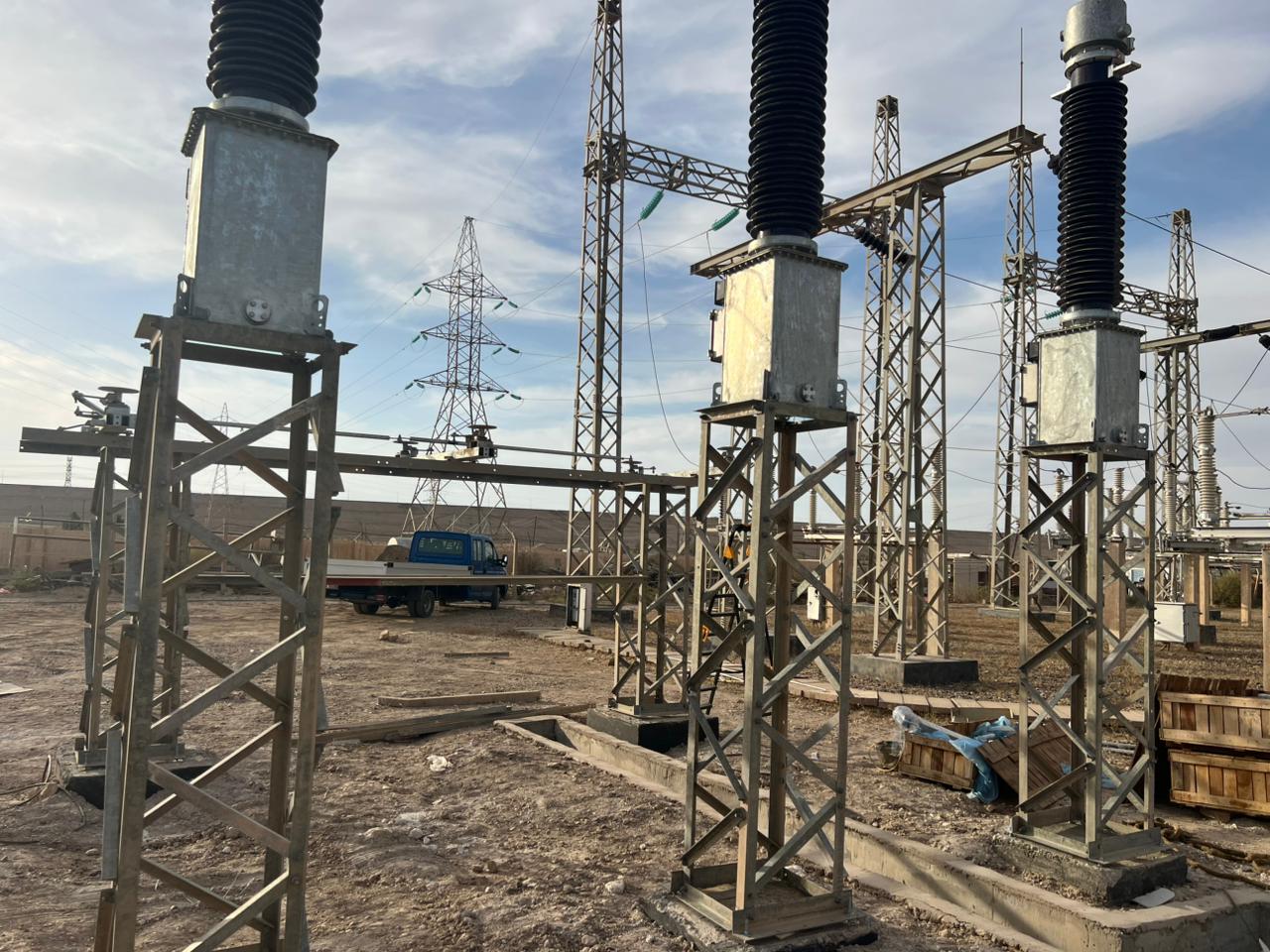

1. Manufacturing of galvanized steel structures for 132 kV electrical equipment

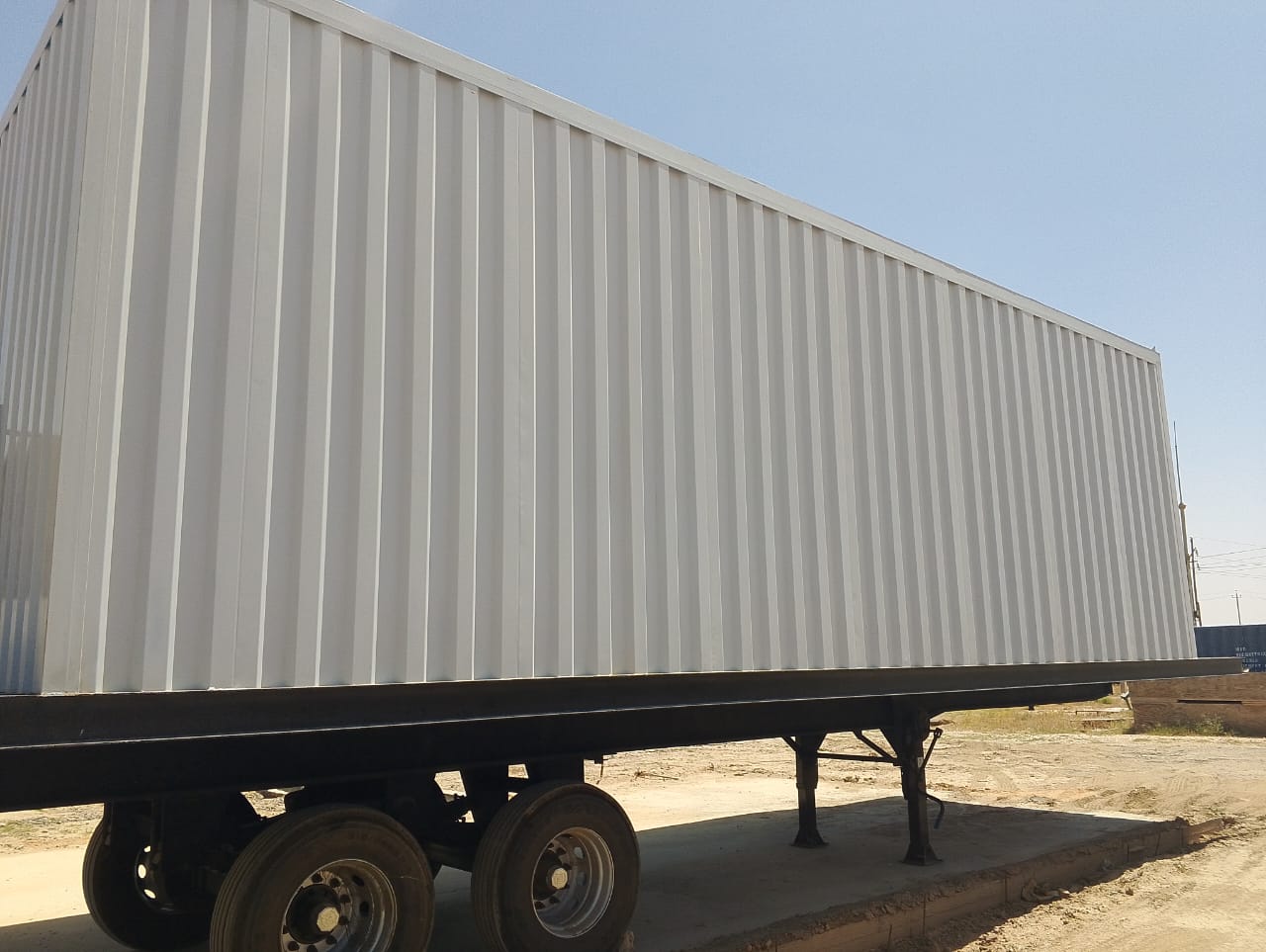

2. Manufacturing of an E-house with dimensions of 9x4 meters and a height of 2.7 meters, mounted on a multi-door trailer, externally coated with a layer of paint, and internally coated with a layer of insulation, compliant with the Ministry of Electricity specifications in terms of durability, ease of transportation, and fire resistance. The E-house includes a fire alarm system, monitoring system, and internal and external and the emergency lighting system which contains medium pressure equipment 33 kV and according to the instructions of the supervising engineer
3. supply of pure aluminum gloves for connecting the primary side of 132 kV equipment
4. supply of galvanized iron cantilever for 132 kV strain bus

• Other Works Schedule for the Haditha Russian Station 132 kV

1. Preparation of a specialized mold for welding wires in the system.
2. Preparation of welding powder, size 150 gm.
3. Preparation of electrical diagrams for all equipment.

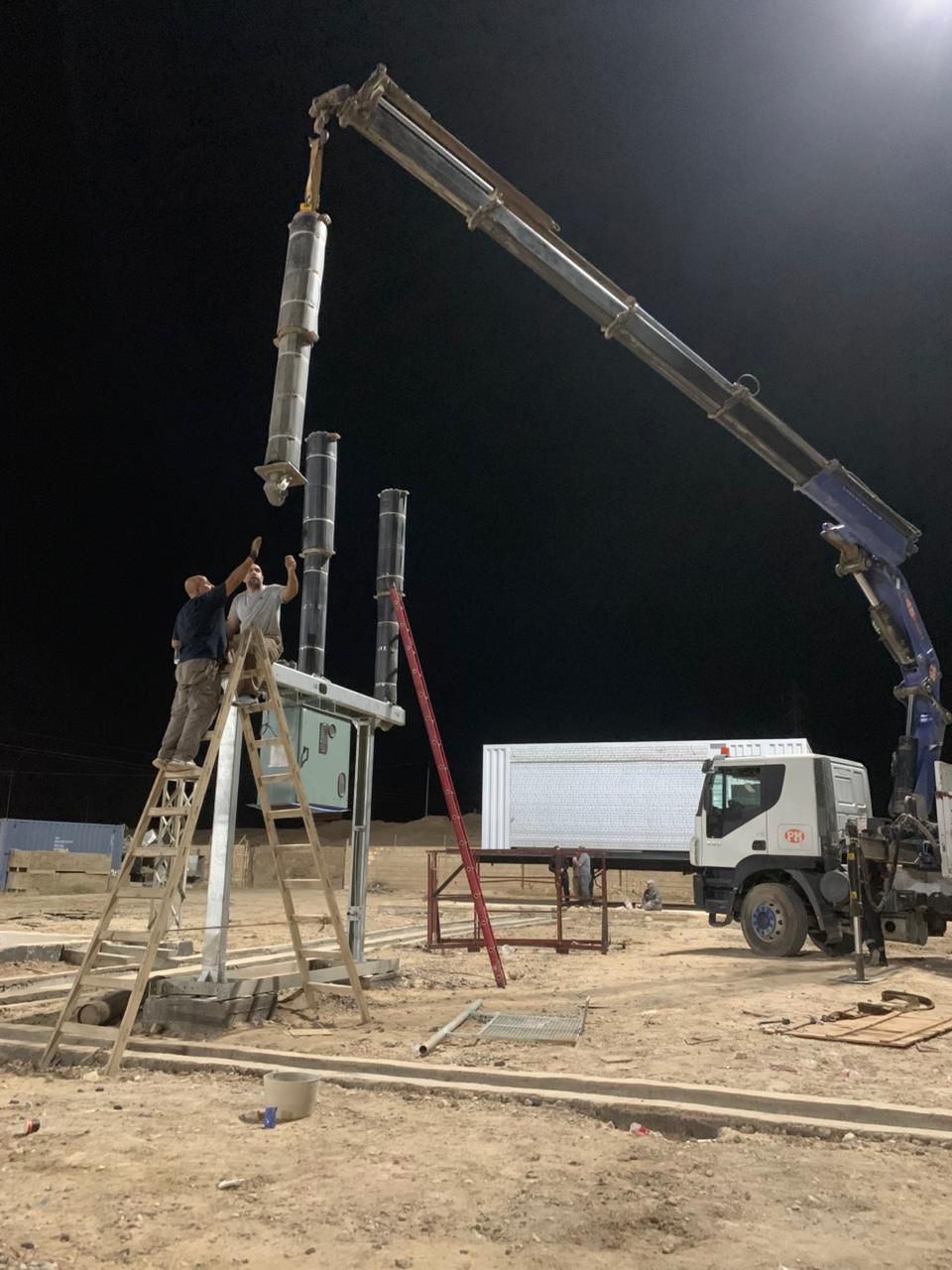

4. Installation, calibration, testing, and commissioning of all equipment.

Photos
